Model No: TJT-50A

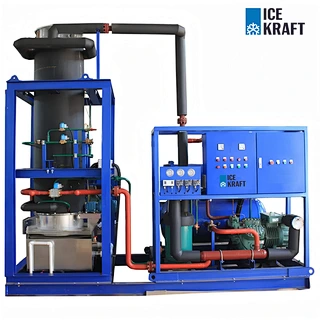

Icekraft TJT-50A Tube Ice Machine (5Ton/Day)

Icekraft Tube Ice machine ,which can make high quality Tube Ice for you. Tube ice is a kind of regular hollow cylindrical transparent Ice,compared with other kinds of Ice, tube Ice has the highest density which is pure, has good air permeability and long storage life. Mainly used for human daily life,such as drinks freezing,wines mixing,food preservation, cold compress,and also used for food&aquatic products processing, poultry slaughtering, meat processing and other industries.

Quantity :

add to cart

Contact Now

All Products

Subscribe to our Newsletter

Product Description

Tube ice is a kind of regular hollow cylindrical transparent Ice,compared with other kinds of Ice, tube Ice has the highest density which is pure, has good air permeability and long storage life. Mainly used for human daily life,such as drinks freezing,wines mixing,food preservation, cold compress,and also used for food&aquatic products processing, poultry slaughtering, meat processing and other industries.

Product Features

1.Production capacity : 5ton per day.
2.Icekraft tube ice is hollow tube shaped, shiny and transparent, and environmentally friendly.
3. Multiple tube ice sizes available,Φ22mm,Φ29mm,Φ35mm etc.
4. Modular design, simple on-site maintenance, suitable for container transportation.
5. Icekraft pursues the manufacture of high-quality and high sanitary tube ice machines. The mechanical parts in contact with water are made of SUS304 stainless steel, and the tube ice produced is clean and sanitary, and can be directly eaten.
6. Fully automatic control, saving labor cost

Tube Ice Machine Application

Tube Ice Machine Parameter

Model	Capacity (t/24hr)	Refrigeration capacity (kw)	Install Power (kw)	Power consumption (kw)	Dimension (mm)	Operating weight (kg)
TJT-10A	1	6	6	4.5	1320X850X1800	650
TJT-20A	2	12	12	8	1600X1450X2250	750
TJT-30A	3	18	15	9.2	2250X1600X2250	950
TJT-50A	5	30	20	14.5	3000X1600X2450	1650
TJT-100A	10	60	40	32	2110X1345X3155	3500
TJT-150W	15	90	65	50	2700X2000X2250	Unit:1450
					1500X1200X4365	Evaporator:2150
					Φ2000x2410	Cooling tower:650
TJT-200W	20	120	80	65	2800X2200X2970	Unit:2350
					1500X1200X4657	Evaporator:2450
					Φ2175x2565	Cooling tower:1120
TJT-250W	25	150	100	75	3000X2200X2500	Unit:2690
					2000X1800X5575	Evaporator:2750
					Φ2175x2565	Cooling tower:1120
TJT-300W	30	180	125	95	3000X2200X2500	Unit:2720
					2000X1800X6075	Evaporator:2968
					Φ2650x2645	Cooling tower:1300
TJT-400W	40	240	167	117	3085X2200X2545	Unit:5000
					2175X2100X6575	Evaporator:5500
					Φ2650x2645	Cooling tower:1300

* W- Water cooled condenser with cooling tower. A-Air cooled condenser . Have Evaporative condenser for optional.
* Refrigerant:R22/R404A/R507A. Power: 380V/3P/50HZ.
* Condition: Ambient temperature:35℃. Wet-B: 25℃. Water inlet temperature: 20℃
* 15T-40T Tube ice machine are Split installation.

Product Details

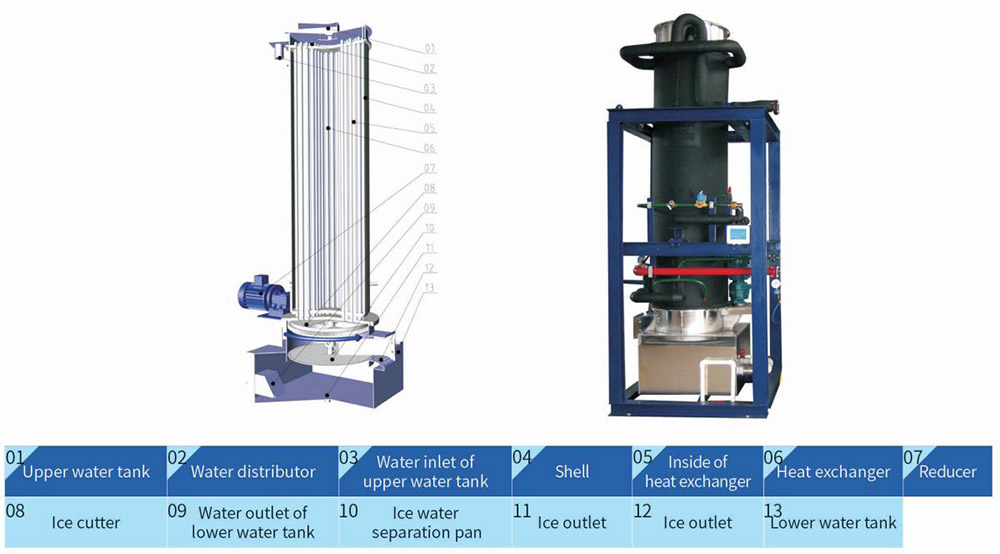

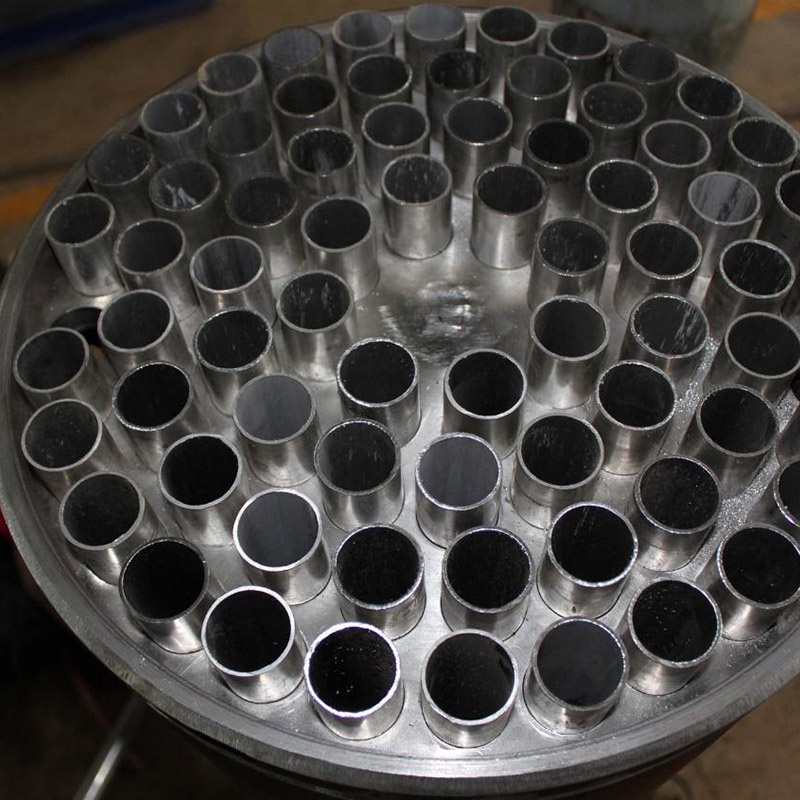

Tube Ice making Evaporator:

Direct evaporation of refrigerant, flooded ice making evaporator, high ice making efficiency.Stainless steel high efficiency tube.External insulation construction of evaporator, anti-corrosion, heat preservation and energy conservation.Stainless steel ice cutting transmission mechanism makes the length of pipe ice uniform and the cut smooth and beautiful.

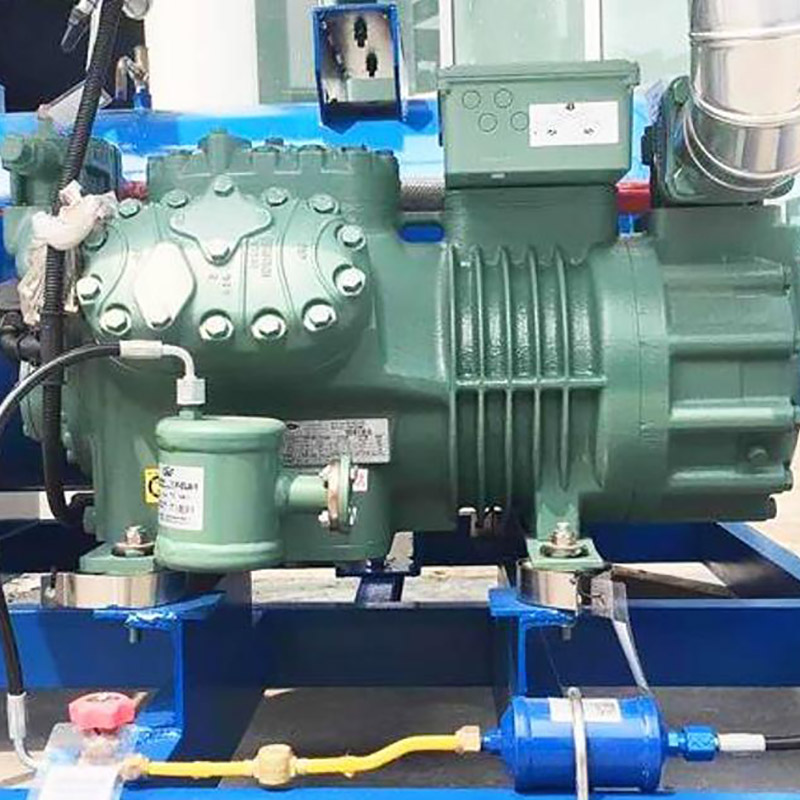

Compressor unit module:
Compressor – Bitzer/Hanbell/Frascold/XM and etc.
Vessels – Liquid receiver, oil separator (when needed), suction accumulator;
Piping – Suction and discharge line with Cooper or Seamless steel pipe;
Valves – Danfoss/ AMG valves, word famous brand.
Control Panel - ThermoJinn, PLC &HMI full automatic control.

We can provide a complete scheme of tubular ice factory according to customer needs, including water filter, water tank, tube ice machine, freezer, ice packaging machine, cold storage and ice delivery truck.
