Industrial Brine Cooling type Block Ice Machine
Brine Cooling type , Product Capacity: 5Ton/Day, 25kg per Pieces.

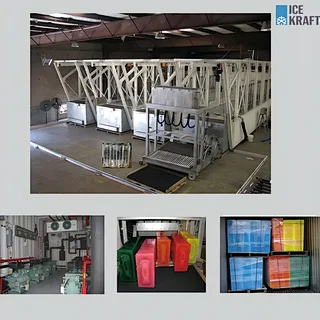

1, ISO standard 20ft or 40ft container, easy to move, easy to install, can be put into use after connecting water and electricity.
2, Small footprint, no need for additional plant investment.
3, Integrated design, all systems have been assembled and tested before delivery, and there is no need to connect on site. Reduce installation workload.
4, High quality evaporator coil with high heat exchange efficiency.
5, Double track crane, installed inside the container, simple operation, stable and reliable operation.
6, The ice making salt water tank adopts special galvanized or stainless steel plate, which is corrosion-resistant and has a long service life.
7, Multiple ice can models available.
Block Ice Machine Parameter:
* 15T-40T Tube ice machine are Split installation.
Model | Capacity (t/24hr) | Ice Block weight (kg) | Refrigeration capacity (kw) | Install Power (kw) | Power consumption (kw) | Dimension (mm) | Operating weight (kg) |
TJB-50BW | 5 | 25 | 35 | 28 | 20.2 | 12192x2438x2896 | 7500 |
TJB-100BW | 10 | 25 | 70 | 52 | 37.6 | 12192x2438x2896 | 8680 |
* W- Water cooled condenser with cooling tower. Have air cooled condenser /Evaporative condenser for optional.
* Refrigerant:R22/R404A/R507A. Power: 380V/3P/50HZ.
*Condition: Ambient temperature:35℃. Wet-B: 25℃. Water inlet temperature: 20℃
* Ice Block weight has 25kg/50kg optional,The Dimension of the equipment will vary depending on the size of the ice.
Humanized design, multiple ice sizes available:
Ice Block Dimension:
Weight (kg/block) | Dimension (mm) | Pro. Time per batch (hr) | Batches per day (times) |
15 | 330*100*600 | 4.5 | 4 |
25 | 350*125*800 | 7.5 | 3 |
50 | 450*170*800 | 9.5 | 2 |

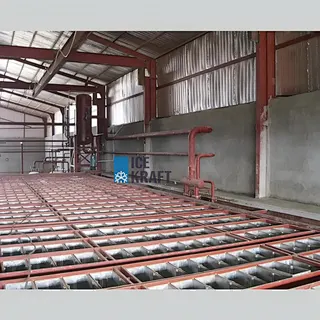

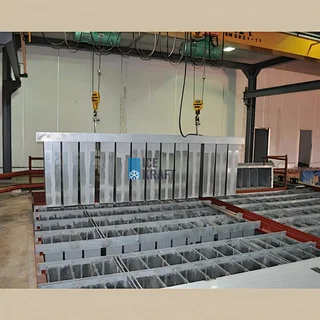

Ice can
Carbon steel galvanized or SUS304 for Ice cans, made of clean and sanitary ice blocks.
Evaporator Coil
Specially designed galvanized evaporator coil, complete set of full surface galvanized, with stable quality and corrosion resistance.
Direct contact with Brine water, high heat exchange efficiency.
Compressor unit module
● Compressor – Bitzer/Hanbell/Frascold/XM/Mycom and etc.
● Vessels – Liquid receiver, oil separator (when needed), suction accumulator;
● Piping – Suction and discharge cooper pipe line, the liquid distributor is connected with the coil, and the liquid supply is uniform;
● Valves – Danfoss/ AMG
● Control Panel - ThermoJinn , automatic control with brine water temperature , simple operating.
